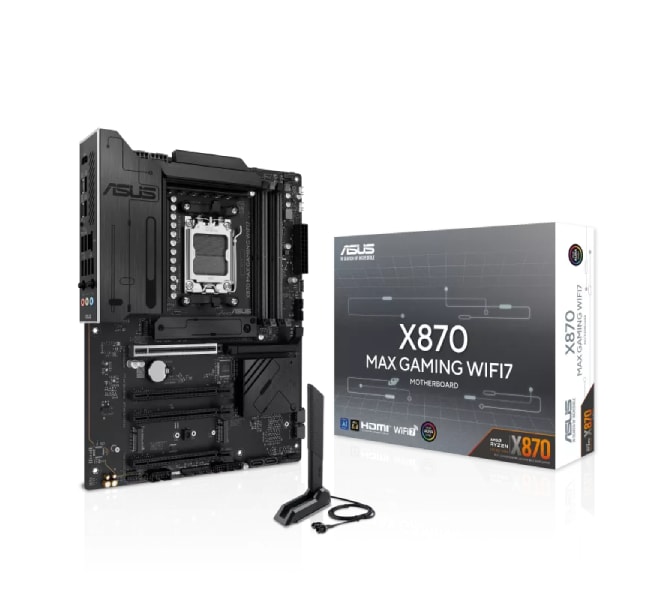

X870 MAX GAMING WIFI7
Hover to zoom

X870 MAX GAMING WIFI7

ASUS

د.إ 1,322د.إ 1,49512% OFF

Delivered by 1 days

For elite gamers, its AM5/DDR5 platform with 3 M.2 slots and advanced WIFI7 ensures 120+ FPS gaming with zero network latency.

Description

• AM5 Socket • DDR5 RAM Support • 3x M.2 Slots • ATX Form Factor • 4x SATA 6 Gb/s Ports

1
In Stock

FULL DESCRIPTION

For the serious GCC gamer in Riyadh who demands a foundation that pushes boundaries and future-proofs their ultimate rig, the X870 MAX GAMING WIFI7 is where your build truly begins.

Imagine dropping into the latest AAA titles like Cyberpunk 2077 or Alan Wake 2 with near-instant map loads and textures streaming flawlessly, your ping razor-sharp thanks to the integrated ultra-low latency WiFi7 connectivity. This board, built on the cutting-edge AM5 socket, unlocks the full potential of the newest Ryzen processors, letting you consistently hit 240+ FPS in esports titles while simultaneously streaming your gameplay in pristine 4K without a single dropped frame.

The native DDR5 support isn't just about raw memory speed; it translates directly into higher bandwidth for complex open-world environments and seamless multitasking when you're managing voice chat, game guides, and your favorite stream. With three M.2 slots, you have unparalleled expansion, allowing you to stack NVMe drives for an enormous, lightning-fast game library while keeping your OS separate for peak responsiveness, plus four SATA 6 Gb/s connectors for legacy drives or massive media storage.

Engineered to perform flawlessly even under the intense summer heat of the GCC, this motherboard features robust power delivery and heat dissipation, backed by local service centers across the region for peace of mind.

The spacious ATX form factor provides generous room for the largest GPUs, high-performance liquid cooling systems, and simplifies cable management, transforming every build and future upgrade into a rewarding experience.

SPECIFICATIONS

Model

Product NameX870 MAX GAMING WIFI7
Form FactorATX
Dimensions30.5 cm x 24.4 cm (12" x 9.6")

CPU

Socket AMD AM5
Supported CPUs Ryzen 9000 / 8000 / 7000

Chipset

ChipsetAMD X870

Memory

DIMM Slots4
Max Memory256GB
Max Speed8000+ MT/s (OC)
Channel Support Dual Channel
ECC Support Yes (On-Die ECC)

Graphics Output

HDMI Port 1 × HDMI (4K@60Hz)
USB4 Display Output 2 × USB4 Type-C (4K@60Hz)

Expansion Slots

PCIe 5.0 x16 1
PCIe 4.0 x161
PCIe 4.0 x16 (x1 mode)2

Storage

M.2 Slots3
M.2_1PCIe 5.0 x4 / 4.0 x4
M.2_2PCIe 4.0 x4 / x2
SATA Ports4 × SATA 6Gb/s

Networking

Ethernet Realtek 2.5Gb
WiFiWi-Fi 7 (2×2)
Bluetooth5.4

Rear USB Ports

USB4 (40Gbps)2 × Type-C
USB 10Gbps 1 × Type-A
USB 5Gbps3 × Type-A

Front USB Ports

USB 20Gbps1 × Type-C
USB 5Gbps 2 Ports via Header

Audio

CodecRealtek 7.1 HD Audio
Playback24-bit / 192kHz
Audio FeaturesAudio Shielding, Premium Caps, Dedicated PCB Layers

Internal Connectors

CPU Fan Header1
CPU OPT Fan1

Special Features

ASUS 5X Protection III

BIOS

TypeUEFI AMI BIOS
ROM Size 256Mb

Accessories

SATA Cables2
WiFi Antenna1
M.2 Rubber Kit1

FREQUENTLY ASKED QUESTIONS

If I buy this motherboard in Riyadh and later need warranty service while I'm in Dubai, will it be covered?

What if the motherboard arrives Dead on Arrival (DOA)? Do I have to pay for shipping it back from Jeddah?

I'm planning to use a very large air cooler, like a Noctua NH-D15, and also fast RAM with tall heatsinks. Will there be clearance issues on this motherboard?

Does this motherboard come with pre-installed thermal pads or heatsinks for all three M.2 slots, especially for new Gen5 SSDs that run hot?

I'm building my first PC in Qatar. Is there any local installation support or technical assistance if I get stuck installing the CPU or RAM on this motherboard?

Will this motherboard support future AM5 CPUs without needing an older CPU for a BIOS update? Does it have a BIOS Flashback feature?
